Corghi A9824TI Swing Arm Tire Changer (Elect.)
Corghi A9824TI Swing Arm Tire Changer (Elect.)
Regular price
$6,233.00 USD
Regular price
$0.00 USD
Sale price
$6,233.00 USD
Unit price
/
per
Couldn't load pickup availability

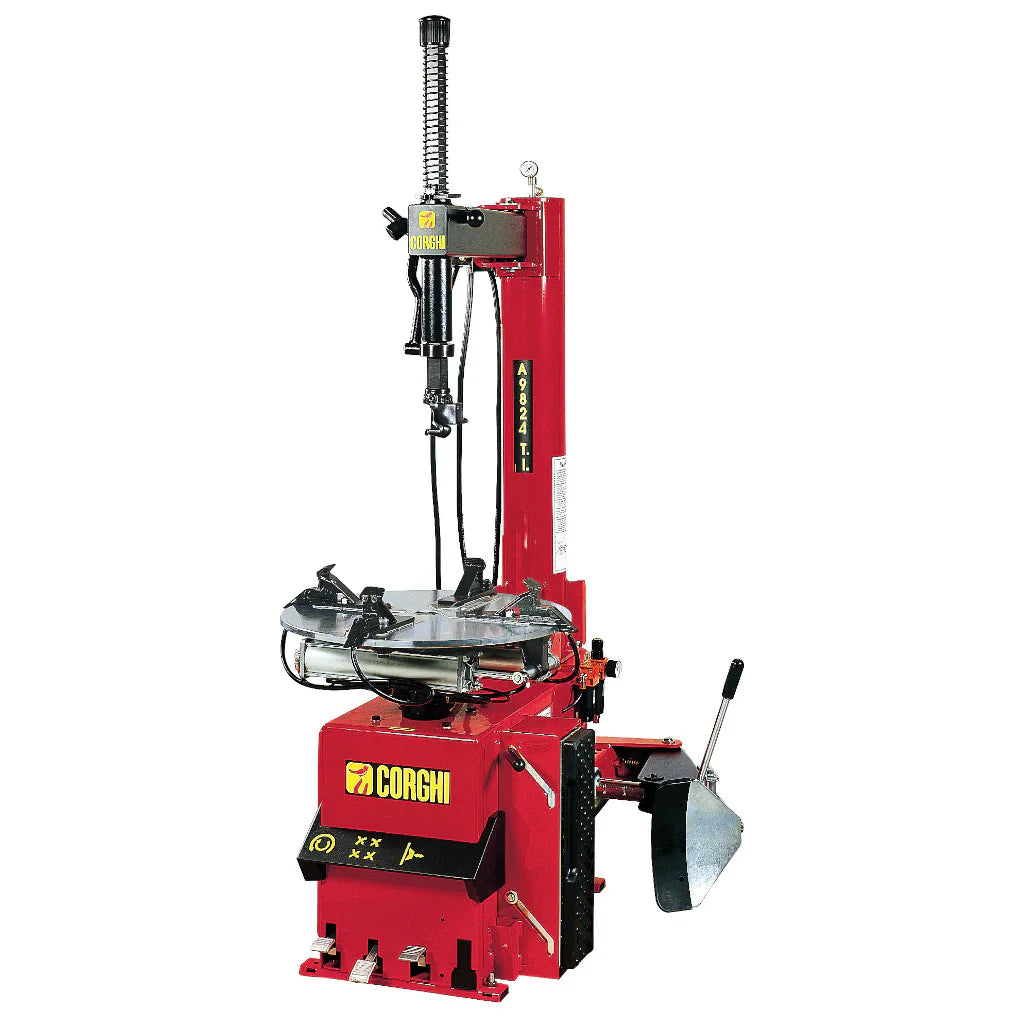

A9824TI Swing Arm Tire Changer (Electric Motor)
Superior quality teamed with a sleek design and other unique features allow this machine to achieve speeds up to 50% faster than any other tire changer on the market in its price range. Runflat certified by all major tire manufacturers.
Features
- Built-In Table inflator with jets in the jaws
- Unique mount/demount head does not touch the rim during operation.
- Locking handle locks head away from rim.
- Powerful action bead-breaker blade follows bead to inside rim contour.
- Heavy-duty turntable rotates in either direction.
- Rebuildable stainless steel cylinders.
- Heavy-duty stainless steel turntable.
- Safe, fast, profitable, and affordable.
- Bead-pressing lever.
- Upper arm assembly swings out of way.
Specifications
| Machine Style | Swing Arm - Rim Clamp |
| Inside Clamping Range | 13" - 26" |
| Outside Clamping Range | 10" - 24" |
| Max Tire Diameter | 47" |
| Max Tire Width | 14" |
| Head Style | Standard |
| Drive System | 2-Speed MI / Air Motor |
| Torque | 958.83 FT/LB |
| Bead Breaker Force | 2756 LBS |
| Weight | 571 LB |

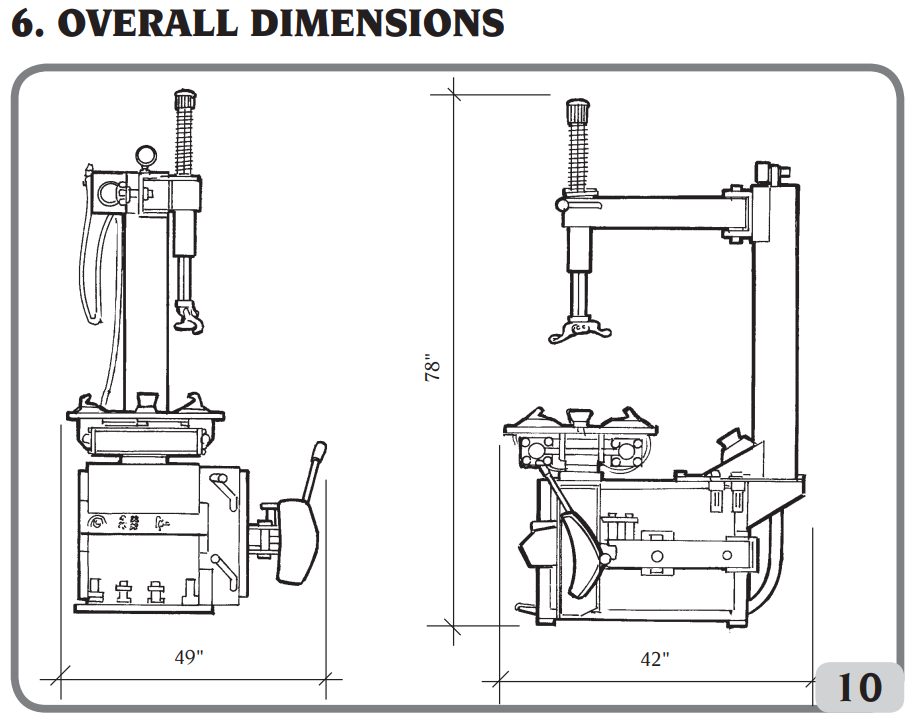

| Machine Dimensions | 42" X 49" X 78" |
