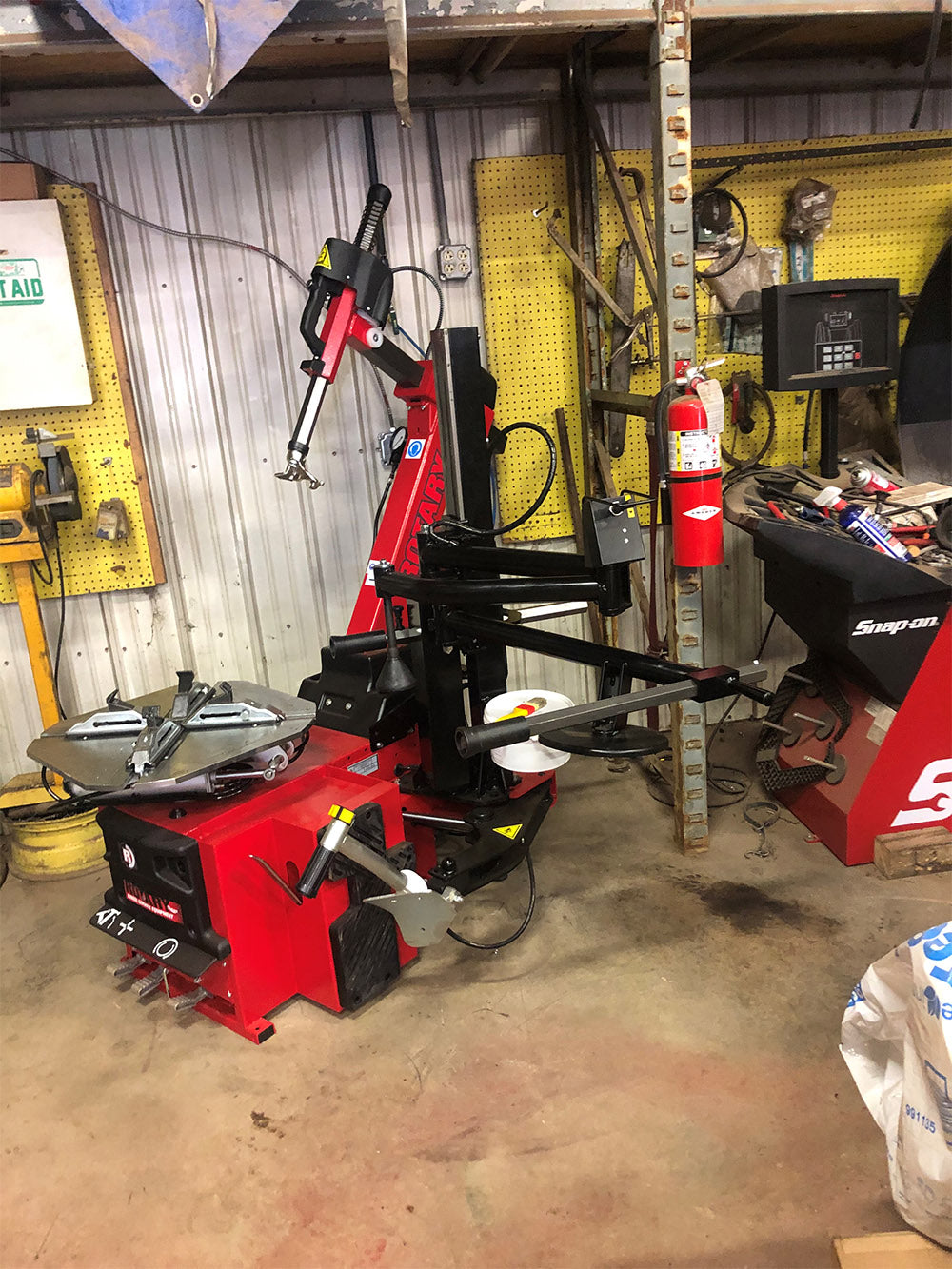

Rotary Tire Changer | Tiltback VSC Tire Changer | R145DR

Rotary Tire Changer | Tiltback VSC Tire Changer | R145DR

Regular price $10,335.00 USD
Regular price $15,778.00 USD Sale price $10,335.00 USD
Sale Sold out

The R145DR is an automatic tire changer with an innovative electric motor inverter. This inverter regulates the chucking table rotation speed to reduce the stress on the bead and avoid damage to the tire. This tire machine also has a Fast Inflation (FI) configuration.

High Performance

The 145DR is a high-performance, top-of-the-range tire changer. With its tiltback function and double-acting bead-breaker cylinder, it outperforms other changers, especially for low-profile and large-sized steel or alloy rims. Works on any wheel up to a maximum width of 17".

Tiltback Changer

The tilt-back changer is more expensive than a swingarm changer, but many believe it's worth the added expense. The tilt-back will be able to accommodate larger tires, it's easy to use and helps avoid damage to tires. All in all, this is a great option with a strong return on investment.

Variable Speed Control

Our Invemotor 0-16 Variable Speed Control is designed with an innovative electric motor inverter.

This allows techs to regulate the chucking table rotation speed, reducing stress on the bead and avoiding tire damage. The drive motor is 220v.

Product Specifications

Technical Data R145D
Motor 180/260V (60Hz) / 1ph 0,75kW
Maximum torque to chuck 885 Ft/L bs (1200 Nm)
Self-centring lock: external 10”- 26”
Self-centring lock: internal 12”- 28,5”
Tool working span 8”- 32”
Maximum tire diameter 45” (1143mm)
Maximum tire width 17” (431mm)
Bead breaker cylinder power at 145 psi 6,745 lbs/force
Power supply Motor 220v / 1Ø / 60 Hz 1 Hp
